    Original Paint Second Hand Earthmoving Equipment Caterpillar 336D With CE

    Ask Lasest Price
    Brand Name : CATERPILLAR
    Model Number : 336D
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 3 sets per month
    • Product Details
    • Company Profile

    Original Paint Second Hand Earthmoving Equipment Caterpillar 336D With CE

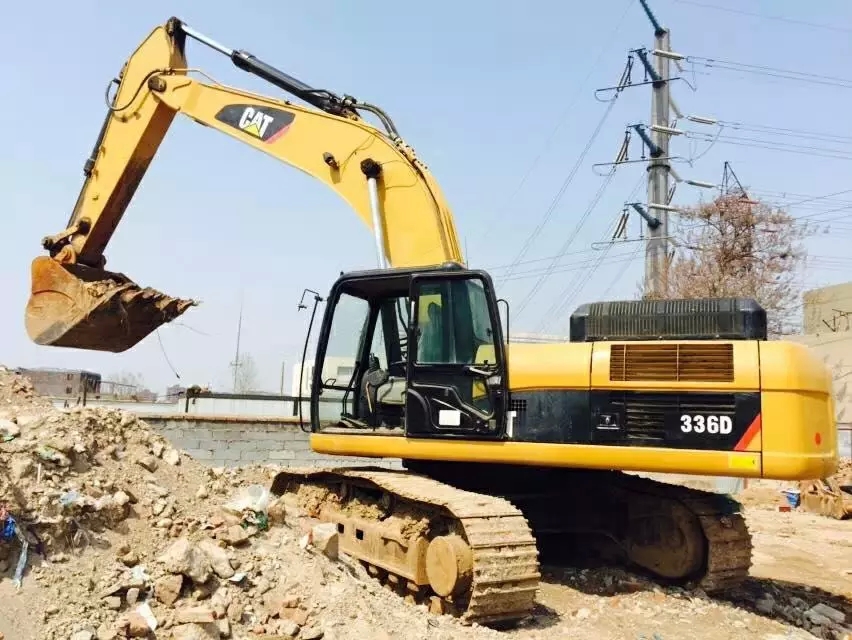

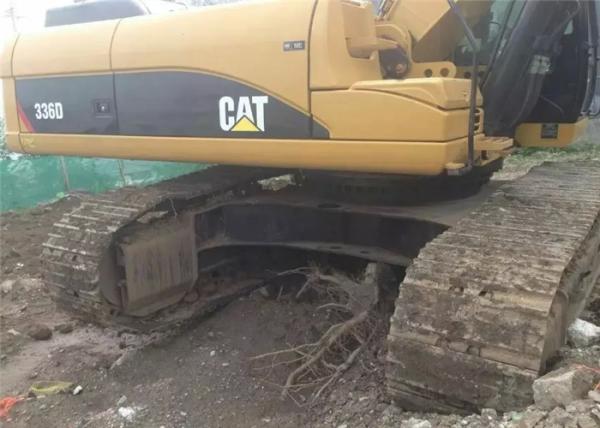

    Secondhand Caterpillar 336D Excavator for sale


    Operating range
    Maximum excavation height (mm) 10240
    Maximum excavation depth (mm) 7390
    The maximum excavation radius of the stop surface (mm)
    Maximum unloading height (mm) 7200
    Maximum vertical excavation depth (mm) 5830
    Maximum excavation depth (2.5 m level) (mm) 7230


    Slot width × height (mm) No bulldozers
    Slot lifting or deepening (mm) No bulldozers
    Main body size
    Rear radius of rotation (mm) 3500
    Minimum ground clearance (mm) 450
    Track gauge (mm) 2590
    The total width of the track (mm)
    Track plate width (mm) 600
    Total length of track (mm) 4590
    Crawler Grounding Length (mm) 3610
    With the ground clearance (mm) 1220
    Cab height (mm) 3140
    Total transport height (mm) 3340
    Total transport width (mm) 3190
    Total length of transport (mm) 11150


    Oil capacity
    Coolant (L) 40
    Engine oil replacement (L) 40
    Hydraulic system (L) 410 (including fuel tank)
    Hydraulic tank (L)
    Fuel tank (L) 620
    Hydraulic system
    Is the hydraulic crushing line available?
    Bucket Cylinder - Number × Bore × Stroke (mm) 150 × 1151
    Stick cylinder - number × bore × travel (mm) 170 × 1738
    Boom cylinder - number × bore × travel (mm) 150 × 1440
    Pilot oil path (MPa) 3.9
    Rotary hydraulic circuit (Mpa) 2.8
    Walking hydraulic circuit (Mpa) 3.5
    Working hydraulic circuit (Mpa) 3.5
    Main pump maximum flow (L / min) 280
    Main Overflow Set Pressure (Mpa) 3.5


    engine
    Cooling water cooling
    Bore × travel (mm × mm) 110 × 127
    Number of cylinders 6
    Displacement (L) 8.8
    Rated power (Kw / rpm) 200/1900
    Engine Model C9ACERT


    performance
    Stick force (kN) 146
    Bucket digging force (kN)
    Climbing ability (%) 70/35 °
    Walking speed (Km / h) 3/5
    Rotation speed (rpm) 10


    specification
    Country of origin Japan
    Stick length (mm) 3200
    Boom length (mm) 6500
    Bucket capacity (square) 1.4
    Machine work weight (kg) 33750


    Conments:

    Cat excavator really good machine indeed. It has high fuel consumption but no need to say the quality.
    quality is very stable, especially for big mining engineer work. Although the speed is not his advantage, but also dare not underestimate his efficiency.
    [Shortcomings] fuel consumption is high


    BoomNot any damaged, enough strong to work
    Turbooriginal turbo ,no heavy smoking after engine turn on
    Cylinders6
    Leading timeAbout 7 work days after u place order
    Shipping termCargo/Ro-ro vessel /40feet-rack-flat
    Delivery timeDeponds on the destination port, It will cost 15-35 days from shanghai depart port to destination port.
    Company experienceMore than 10 years in this field
    Payment terms30%T/T in advance, 40% before loading, 20% after copy B/L.
    Market1.Africa: GHANA ,CAMEROON ,Nigeria ,Kenya ,South Africa, Congo, Tanzania, Mozambique ,Zimbabwe,ETC.
    2.Asia :Iran ,Oman ,Pakistan ,Qazaqstan , Thailand, Malaysia, Cambodia ,Vietnam ,philippines etc
    3.South America: Ecuador, Bolivia, Chile, etc.
    Also some buyers from USA &EUROPE, JAPAN, AUSTRALIA, ETC.


    Our Service:
    Book hotel before visiting, pick you up in airport, guide you travel around Shanghai when you are free.
    More than 10 years experience to dealing with all types of used engineering machinery and shipment service all over the world.
    3 Years warranty for engine and pump.
